Coordinate Exporter

CooRex - logo

Short description

With the help of the Coordinate Exporter local and global coordinates of

  • scans
  • spheres
  • checkerboards
  • circularflat targets and
  • point3ds

will be exported fast and automatic. These are useful for statistical analysis or to check the accommodation with an external tool.

Coordinate Exporter features:

Export of local and/or global coordinates of

  • scans
  • spheres
  • checkerboards
  • circularflat targets and
  • point3ds

Itroducing with version 1.0.212: AutoFeatures (spheres, checkerboards) will be exported too!

Itroducing with version 1.0.213: additional units (meter, centimeter, millimeter, yard, foot, inch, USsurvey yard, USsurvey foot, USsurvey inch)!

Available licensing models are:

  • Full license – pay once, use the same major version lifetime

Usage

  1. install APP
  2. load a Project
  3. start Coordinate Exporter
  4. choose desired options from Dialog
    • export local coordinates of objects
    • export global coordinates of objects
  5. Thats it - nothing more
    • Coordinate Exporter will generate text files

Known Issues

  • Unloading the app while running will cause SCENE to crash.

System Requirements and Compatibility

  • SCENE 5.x
  • SCENE 5.x LT
    (x > 1)

  • Identical with SCENE
  • Network card for licensing
  • SCENE must be run as administrator to install the plug-in
  • SCENE must be run as administrator to install any license (if license is installed with user privileges, each user has to install the license seperately)

Changes

  • 06.03.2017 - Version 1.0.223
    • license manager changed (still working with former licenses), now compatible to Windows 10 registry behavior.
  • 20.03.2017 - Version 1.0.224
    • tested with Windows 10 and SCENE 6.2.4.30
  • 03.04.2017 - Version 1.0.225
    • license manager enhanced, works now with scantaxi.license-files because of some registry limitations

Example

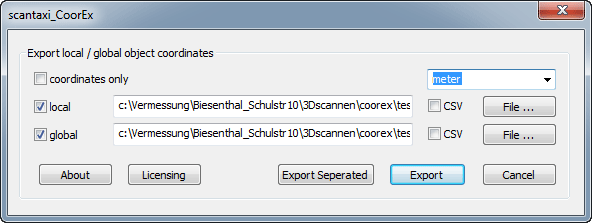

CooRex-Dialog
Coordinate Exporter Option Dialog

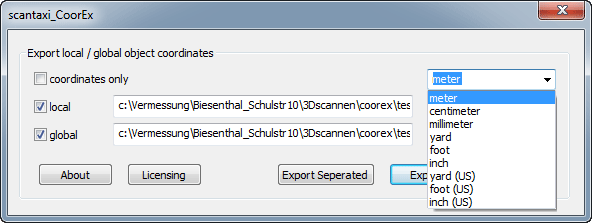

CooRex-Dialog
Coordinate Exporter Option Dialog - available units for Export

By the way: The Demo-Export is in meter only! Regardless of the choosen units!

Download

End User license Agreement (PDF*)

User manual (PDF*)

Trial Version / Full Version
CoordinateExporter Version 1.0.226

This version supports US survey coordinates and other export options
1 foot (US survey) = 1200/3937 m ~ 0.3048006 m
1 inch (US survey) = 1/12 foot (US survey)
1 yard (US survey) = 3 foot (US survey)

Net price of this app is 89,- EUR

APP can be ordered at the FARO 3D App Center
direct link to the APP in the FARO 3D App Center: scantaxi CoorEx

or direct per email (orders [at] scantaxi.de),

* requires PDF-Reader
