Project Adjustment Helper

PAH - logo

Short description

Project Adjustment Helper is a SCENE plugin developed to adjust projects in an easy and fast way.

It accumulates all information needed for JAG3D or rmNetz to calculate the adjustments and imports the results back to SCENE.

As an outcome the gap between double lines decreases or disappears at all. And some additional statistics will be generated by JAG3D or rmNetz, provideing a nice quality report.

The deviation of objects is decreased as well.

It is designed to improve scan placement when using References and/or marked targetpoints (Spheres, Checkerboards, Round Targets, Point3D). A correct naming of targets is fundamental. This can be provided by A scantaxi APP Automated Registration.

Correct naming is required - alternatively the project has to be preregistered/preorientated, but naming in JAG3D may be different from naming in SCENE (nevertheless calculation will work)

Project Adjustment Helper features:

Export cordinates of

  • scans
  • spheres
  • checkerboards
  • circularflat targets and
  • point3ds

Export observations of

  • scans
  • spheres
  • checkerboards
  • circularflat targets and
  • point3ds

Import of adjusted transformations of

  • scans

Available licensing models are:

  • Full license – pay once, use the same major version lifetime

Usage

  1. install APP
  2. load a Project
  3. start Project Adjustment Helper
  4. choose desired options from Dialog
    • export to JAG3D
    • export to rmNetz
  5. start JAG3D or rmNetz
  6. save adjusted transformation data
  7. import data into SCENE
  8. That's all - all scans are well orientated
  9. save project! If this step is missed, the data has to be imported again when reopen the project in SCENE

Known Issues

  • Unloading the app while running will cause SCENE to crash.

System Requirements and Compatibility

  • SCENE 5.x
  • SCENE 5.x LT
    (x > 1)

  • Identical with SCENE
  • Network card for licensing
  • SCENE must be run as administrator to install the plug-in
  • SCENE must be run as administrator to install any license (if license is installed with user privileges, each user has to install the license seperately)

Changes

  • 06.03.2017 - Version 1.0.599
    • license manager changed (still working with former licenses), now compatible to Windows 10 registry behavior.
  • 20.03.2017 - Version 1.0.599
    • tested with Windows 10 and SCENE 6.2.4.30

Example

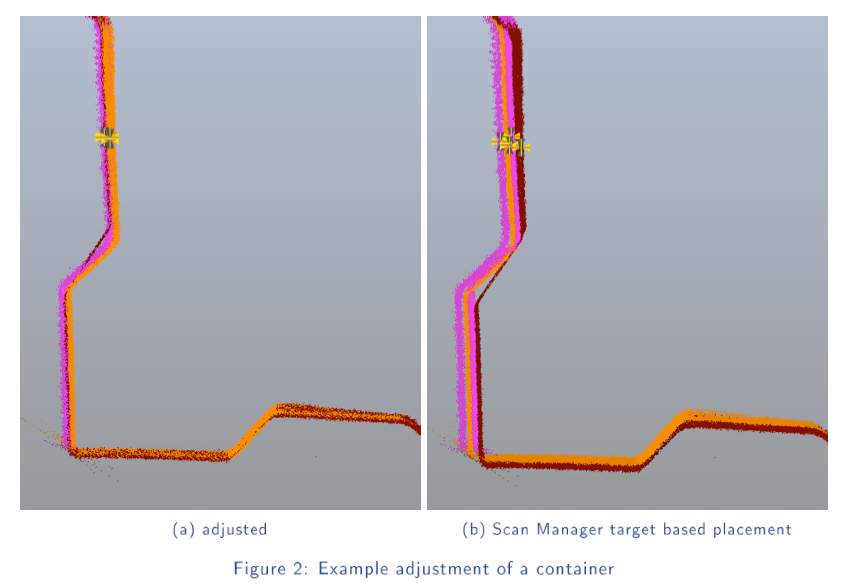

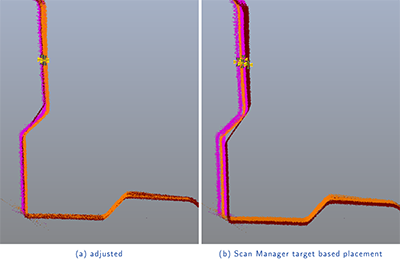

adjustment of a container
Project Adjustment Helper Example adjustment of a container

adjustment of a container

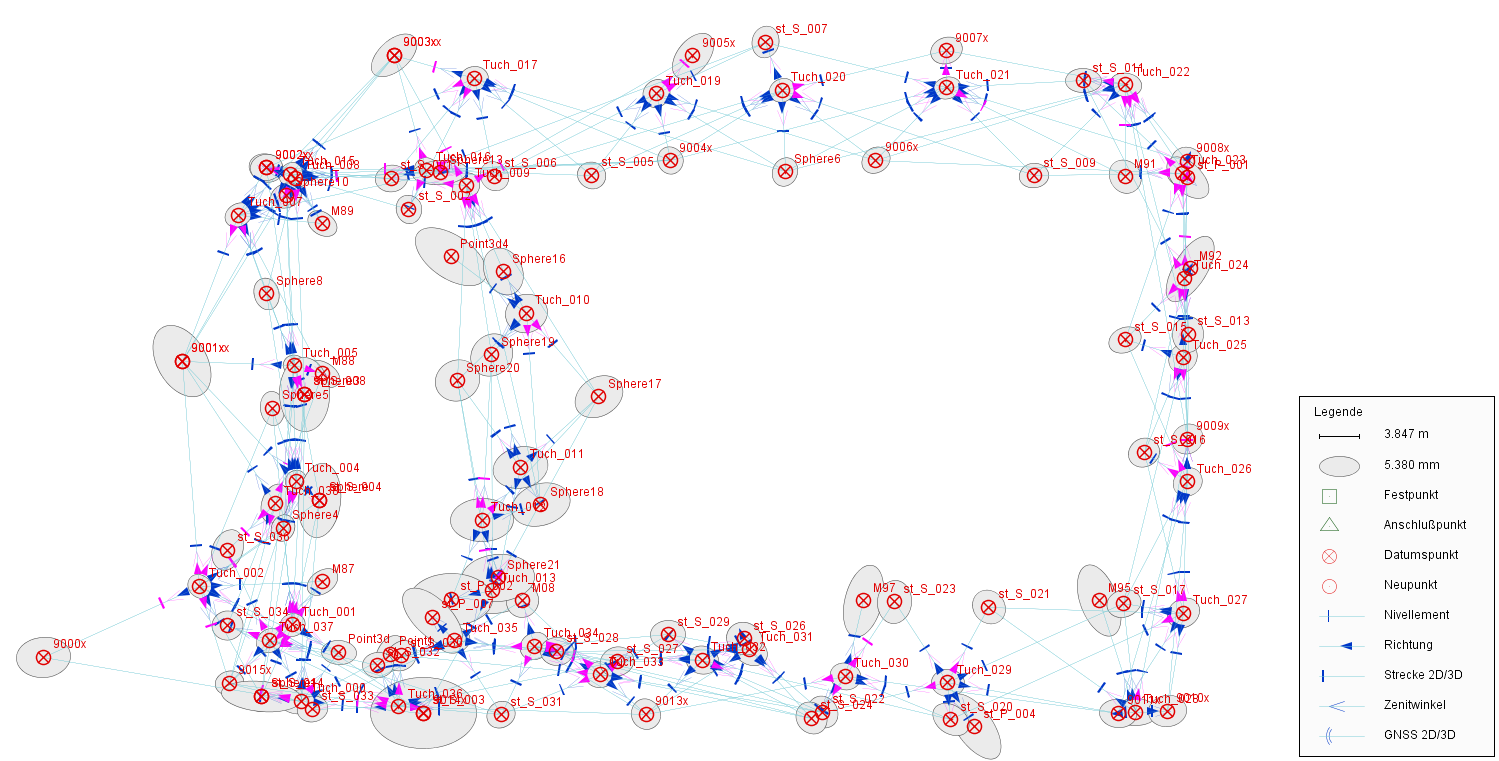

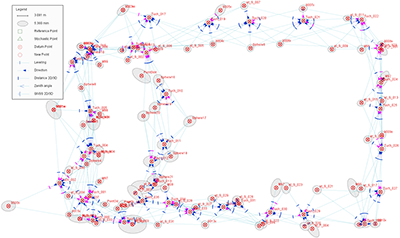

Project Adjustment Helper Resulting sketch from JAG3D

Download

End User license Agreement (PDF*)

User manual (PDF*)

Trial Version / Full Version
ProjectAdjustmentHelper Version 1.0.599

Net price of this app is 279,- EUR

APP can be ordered at the FARO 3D App Center
direct link to the APP in the FARO 3D App Center: scantaxi PAH

or direct per email (orders [at] scantaxi.de),

* requires PDF-Reader
