Software (english)

Transformation Copy

TraCo - logo

Short description

Transformation Copy is designed to transfer transformation data between similar scans in different projects.

The project should be "registered", otherwise Transformation Copy will make no sense.

This APP was developed on community request.





Transformation Copy features:

Copies transformation data

  • export of scan transformation parameters
  • import of scan transformation parameters
  • takes into account the scan names and UUIDs

Available licensing models is:

  • Full license – it's free - no payment necessary
  • Registration is necessary

Please take into account, that software development is expensive (even for small tools like this APP)! If you want to support our efforts, you may consider to buy some scantaxi scan-coins or any other scantaxi APP in the FARO 3D App Center!

Usage

TraCo menu
Transformation Copy menu

TraCo menu
Transformation Copy toolbar

  1. install APP
  2. load a Project
  3. start Transformation Copy
    choose desired feature from menu or toolbar
    • export transformations to TraCo-file
    • import transformations from TraCo-file
  4. That's all
  5. if satisfied, save project after importing the data!

BEWARE: APP does not show any message, if overwriting files!

TraCo menu

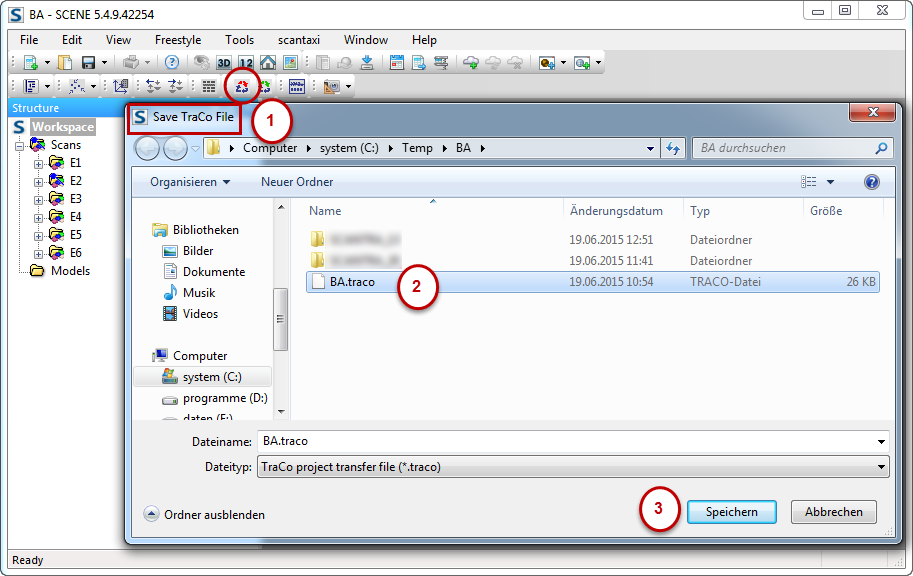

Transformation Copy export transformation data

TraCo menu

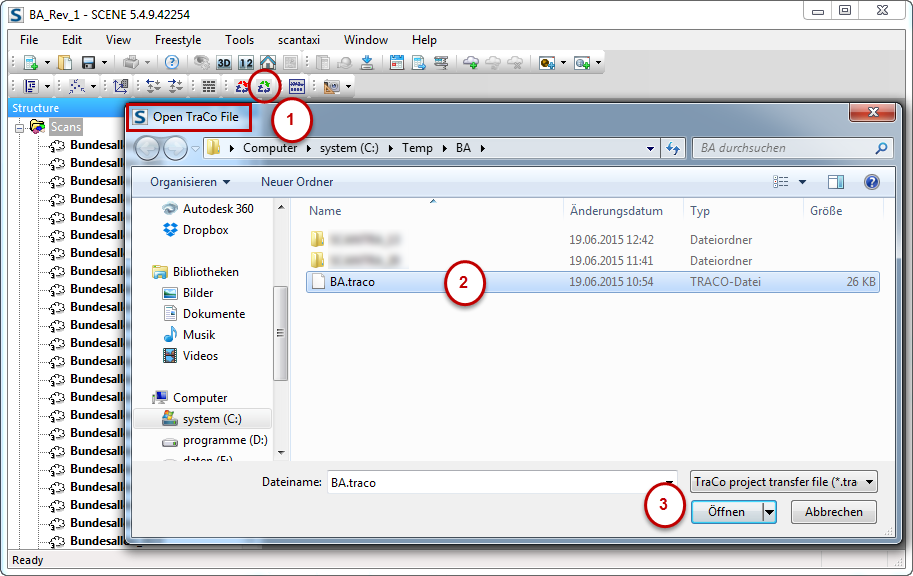

Transformation Copy import transformation data

Known Issues

  • Unloading the app while running will cause SCENE to crash.

System Requirements and Compatibility

  • SCENE 5.x
  • SCENE 5.x LT
    (x > 1)

  • Identical with SCENE
  • Network card for licensing
  • SCENE must be run as administrator to install the plug-in
  • SCENE must be run as administrator to install any license (if license is installed with user privileges, each user has to install the license seperately)

Changes

  • 03.02.2016 - Version 1.0.2
    • Bugfix in license manager
    • new feature: remove all transformations of clusters/folders, if importing transformations from file
    • reads stored files from previous versions, too
  • 08.06.2016 - Version 1.0.3
    • license manager changed (still working with former licenses), now compatible to Windows 10 registry behavior.
    • change feature: due to an BUG in SCENE, we will not check the UUID anymore!
    • reads stored files from previous versions, too
  • 20.03.2017 - Version 1.0.3
    • tested with Windows 10 and SCENE 6.2.4.30

Example

Download

End User license Agreement (PDF*)

User manual (PDF*)

Full Version (Registration necessary)
TransformationCopy Version 1.0.3

APP is free, registration is necessary! Please Insert 00555 into the TAN-Field

Please take into account, that software development is expensive (even for small tools like this APP)! If you want to support our efforts, you may consider to buy some scantaxi scan-coins or any other scantaxi APP in the FARO 3D App Center!

APP can be ordered at the FARO 3D App Center
direct link to the APP in the FARO 3D App Center: scantaxi TraCo

or direct per email (orders [at] scantaxi.de),

* requires PDF-Reader
